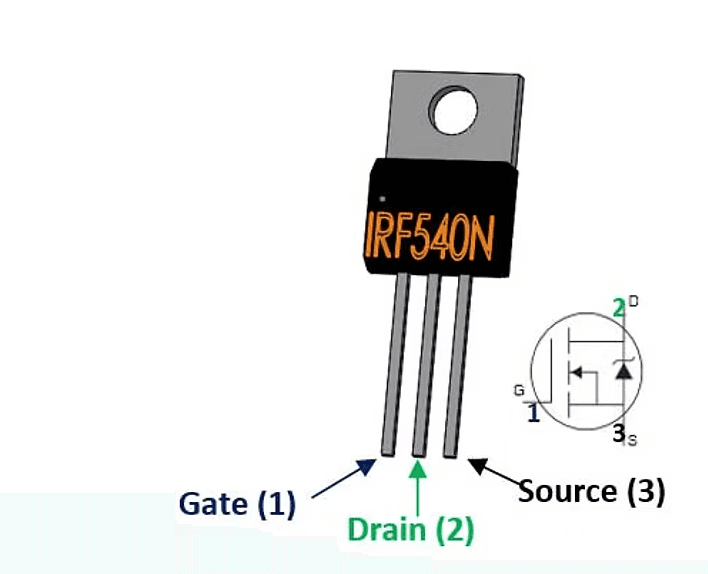

product details IRF540 is a power MOSFET designed to drive high current loads
It can handle maximum load of upto 23A and the maximum load voltage is upto 100V DC
It is using trench technology which makes it capable to reach high level of driving capability
It can be used for both switching and amplification purposes
This transistor possesses some of the good features that make it ideal to use as a switch
It is capable to perform high speed switching therefore it can be used in wide variety of application where you want to switch the load with high speed such as UPS
Product Description
product details
IRF540 is a power MOSFET designed to drive high current loads. It can handle maximum load of upto 23A and the maximum load voltage is upto 100V DC. It is using trench technology which makes it capable to reach high level of driving capability. It can be used for both switching and amplification purposes. This transistor possesses some of the good features that make it ideal to use as a switch. It is capable to perform high speed switching therefore it can be used in wide variety of application where you want to switch the load with high speed such as UPS.
Other than that it can also be used as an amplifier, the maximum power dissipation of 100W makes it ideal to build a high power audio amplifier and it can also be used in high power audio amplifier stages.
Features / Technical Specifications:
Package Type: TO-220
Transistor Type: N Channel
Max Voltage Applied From Drain to Source: 100V
Max Gate to Source Voltage Should Be: ±20V
Max Continues Drain Current is : 23A (Different manufacturers have slightly different ratings of continuous drain current)
Max Pulsed Drain Current is: 92A (Different manufacturers have slightly different ratings of continuous drain current)
Max Power Dissipation is: 100W
Minimum Voltage Required to Conduct: 2V to 4V
Max Storage & Operating temperature Should Be: -55 to +150 Celsius
